CELTRON LOAD CELL

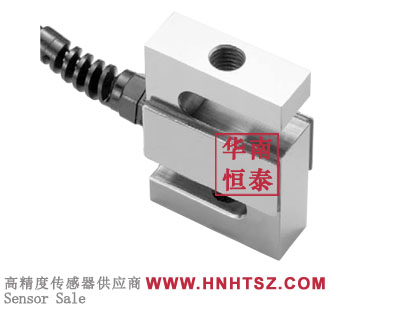

STC-2500lb load cell

Shape: S-type load cell
Nonlinearity: 0.02%±% of rated output(SS:0.05)
Load Direction:tension&compression
Model:STC-25kg STC-50kg STC-100kg STC-150KG STC-250kg STC-500kg STC-1T STC-2T STC-2.5T STC-5T
Product description: STC-2500lb use for measuring tension or pressure, S shape, can be used alone, or can be output multiple at the same time through the assembly, used in mechanical reconstruction (machine to electricity
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale STC-2500lb the load cell adopts the working principle of resistance strain gauge. under the action of external force, the elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also deform with deformation, and the resistance of the strain gauge will become larger or smaller. this resistance change is then converted into an electrical signal (voltage or current) through the corresponding measurement circuit, thus completing the process of converting the external force into an electrical signal.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【Testing machine sensor load cell STC-2500lb information】

Note: The following information is for reference, Please refer to Testing machine sensor version
Testing machine sensor load cell STC-2500lb datasheet download：

Testing machine sensor load cell STC-2500lb features：
Recommended excitation voltage :10V,AC/DC
Operating temperature range :-10℃~+40℃
Excitation voltage :15V,AC/DC
Temperature compensation range :-20℃~+60℃
Rated output :3mV/V±10%
Zero point balance :±1%
Creep error(20 minutes) :0.02%R.O
Input impedance: 385Ω±5Ω
Output impedance: 350Ω±3Ω
Insulation impedance gt:5000MΩ
Non-linearity :±0.02%R.O(SS:0.05)
Repeatability :±0.03%R.O
Safe load :150%
Failure load :300%
Moisture-proof rubber seal
Bidirectional (tension/compression)

Testing machine sensor load cell STC-2500lb dimension：

Testing machine sensor load cell STC-2500lb series models：

STC-2500lb STC-5kgAL,STC-10kgAL
STC-25kg STC-50kg STC-100kg STC-150KG STC-250kg STC-500kg STC-1T STC-2T STC-2.5T STC-5T
