ANYLOAD silo weighing system 563YHM6-AA type top-lifting weighing module installation and usage

The authorized Chinese agent of ANYLOAD, Shenzhen Huanan Hengtai Industrial Co., Ltd., recommends the ANYLOAD silo weighing system 563YHM6-AA, featuring self-toppling weighing module installation and usage, to you.

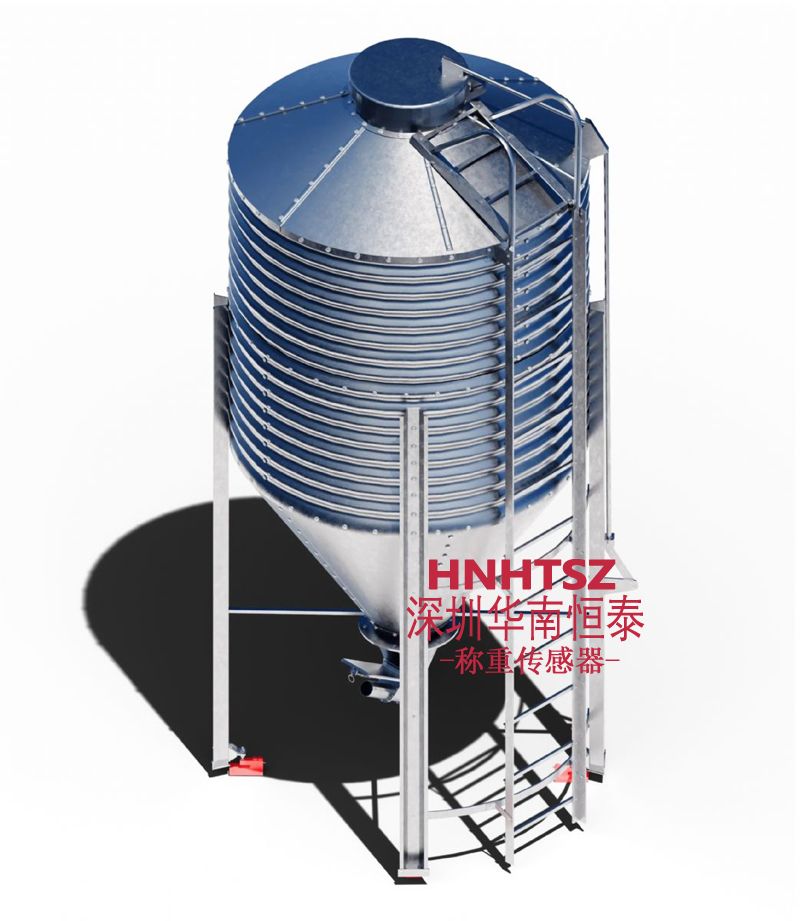

The silo weighing system is of vital importance in both industrial and agricultural fields, enabling precise and continuous monitoring of the materials within storage tanks or silos. Whether it is measuring grains, chemical raw materials or liquids, ensuring accurate load measurement directly affects process control, inventory accuracy and operational efficiency. This requires the weighing module to be seamlessly integrated into existing facilities while providing long-term reliable operation, high-precision measurement and protective performance in harsh environments.

Challenges
1. Adaptability challenge: Most storage tanks or silos have already been installed and put into use. Without causing significant downtime or structural modifications, the space for adding a weighing solution for retrofitting is extremely limited.
2. Environmental exposure challenge: Outdoor or semi-shaded installation scenarios need to withstand temperature fluctuations, humidity and dust, which may pose dual threats to the sensor's measurement accuracy and service life.
3. Precision guarantee under load changes: The system needs to adapt to a wide range of weighing (250lb to 20Klb) while resisting lateral loads and maintaining high measurement accuracy.
Solution
The ANYLOAD brand offers a highly adaptable and durable solution that is robust and reliable in harsh conditions. It uses the 563YHM6-AA self-lifting weighing module, along with the 563YH-23 weighing sensor and the J04EP-E/J04ES-E junction box.

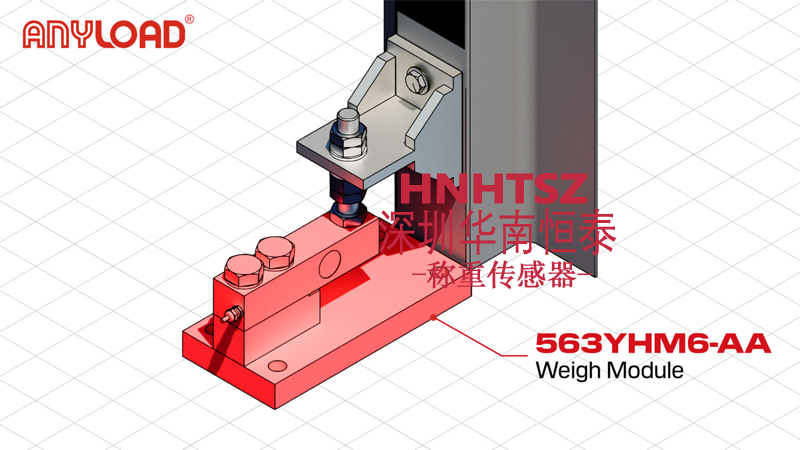

 The 563YHM6-AA weighing module supports easy retrofit installation: It can be directly fixed to the tank legs and lifted the silo body through hydraulic synchronous lifting without the need for external lifting equipment.
 The 563YH-23 weighing sensor meets NTEP III level and OIML C4 to C6 accuracy standards and provides ATEX and FM explosion-proof versions, suitable for hazardous environments.
 This weighing sensor is designed to withstand lateral loads and complies with IP67 protection standards, ensuring stable operation even in harsh outdoor environments.
 The J04EP-E/J04ES-E junction box simplifies cable layout, supports parallel calibration of multiple sensors, has built-in moisture-proof breathing holes, and can be extended to connect four or more sensors.

Conclusion
The ANYLOAD silo weighing module system - consisting of the 563YHM6-AA weighing module and the 563YH-23 sensor - provides a compact and high-performance industrial-grade weighing solution for tank/silo retrofitting. Its excellent durability, ease of installation and adaptability to harsh environments make it an ideal choice for outdoor and factory applications.
