sensys pressure sensor

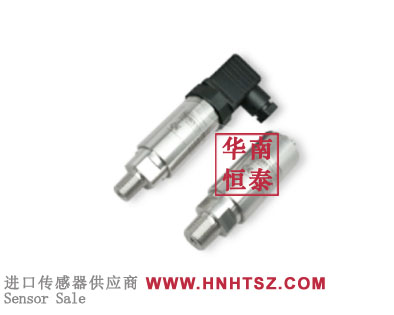

PSHH-760CDIG Pressure transducer

PSH series material: stainless steel
PSH series accuracy: ±0.15%FS
PSH series output:0~5VDC,1~5VDC,0~10VDC,4~20mA
Model:pshbc0.02masg PSHH0005PIAG PSHH0007PIAG PSHH0030RCPJ PSHH0100BCAG PSHH0200RCPJ PSGH-760HAAA PSGH-760HCPA PSGH-760HAPA PSHJ0004KCIG PSHH0001BAPG
Product description: PSHH-760CDIGsensing element has excellent temperature properties by adopting a self temperature compensation foil strain gauge. The size is small and price is low for vehicles and heavy machinery use.
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale PSHH-760CDIG A pressure sensor is a sensor that detects pressure. The pressure applied to the silicon wafer diaphragm is detected as the deformation of the diaphragm and the pressure is measured by converting it into an electrical signal. Widely used, such as water heater, air conditioning, washing machine, dishwasher, barometer, water pressure gauge, oil pressure gauge and so on.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【Sensys Pressure transducer PSHH-760CDIG information】
Sensys Pressure transducer PSHH-760CDIG is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to Sensys version
Sensys Pressure transducer PSHH-760CDIG datasheet download：

Sensys Pressure transducer PSHH-760CDIG features：

CE Certified

VDC, mA output

Measuring range 0~35MPa

0.15%FS accuracy

Gauge and absolute measurement

Piezoresistive silicon cell

Stainless steel(316L) media-wetted materials

Sensys Pressure transducer PSHH-760CDIG Applications：

Applications

Process control

Hydraulics & Pneumatic

Compressor Control

Chillers

Refrigeration Equipment

Sensys Pressure transducer PSHH-760CDIG selection：

Sensys Pressure transducer PSHH-760CDIG series models：

pshbc0.02masg PSHH0005PIAG PSHH0007PIAG PSHH0030RCPJ PSHH0100BCAG PSHH0200RCPJ PSGH-760HAAA PSGH-760HCPA PSGH-760HAPA PSHJ0004KCIG PSHH0001BAPG Shenzhen Huanan Hengtai Industrial Co.,Ltd sales SensysUsing temperature compensated piezoresistive silicon cells with excellent temperature characteristics and diaphragm and thread integrated structure and strong instantaneous overpressure, pressure does not cause leakage. In addition, several types of controllers can be connected with built-in amplifiers.

If you want to know more about Sensys price, Sensys delivery time, Sensys manufacturer, Sensys product information, Sensys product specification, Sensys technical parameters, Sensys installation and debugging, Sensys wiring mode, please contact E-mail:sales@hnhtsz.com
