The H8C-C3-500kg-4B1 load cell supplied by Shenzhen South China Hengtai Industrial Co., LTD., as one of the core products under the ZEMIC brand, plays an important role in the industrial weighing field. It adopts a single shear beam structure design, and the alloy steel material endows it with a load capacity of up to 500kg and fatigue resistance. The C3-level accuracy ensures data stability in industrial weighing scenarios. The IP67 protection grade, combined with the fully sealed welding process, can handle harsh working conditions such as dust and humidity. It is suitable for automated production lines, warehousing and logistics weighing systems, and chemical raw material proportioning equipment.
Shenzhen Huanan Hengtai Industrial Co., Ltd.-ZEMIC load Cell Supplier in stock
Contact number: 0755-29660599
13928483791(same number for wechat)
E-mail:sales@hnhtsz.com
【 Support Services 】
Warranty period: 12 months
Provide technical support for sensor solutions and selection recommendations
Note: The content on this product page is for reference only. The information from the ZEMIC manufacturer shall prevail
Product Introduction of ZEMIC Load Cell H8C-C3-500kg-4B1
Performance characteristics of ZEMIC load cell H8C-C3-500kg-4B1:
Range :0.5t - 7.5t
◆ Alloy steel material, single shear beam structure design;
◆ The protection grade of H8C load cell is IP67;
◆ Applicable to various electronic weighing equipment such as electronic platform scales and hopper scales;
◆ OIML Certification, Certificate number: R60/2000-NL1-12.12
◆ German PTB Test, Certificate Number: D09-03.19 Revision2
◆ NTEP certification, Certificate number: 12-028
Application of ZEMIC load cell H8C-C3-500kg-4B1:
H8C-C3-500kg-4B1 is a high-precision and cost-effective weighing solution, which is highly suitable for various applications. It is used for pressure measurement and can be used with a single sensor or in combination with multiple sensors. It is easy to install and debug. It is applicable to electronic platform scale weighing, hopper scale weighing, truck scale weighing, rail scale weighing, silo weighing, cylinder trough weighing, hand-pushed scale weighing, packaging machinery, automated production lines, warehousing and logistics weighing systems, and chemical raw material proportioning equipment.

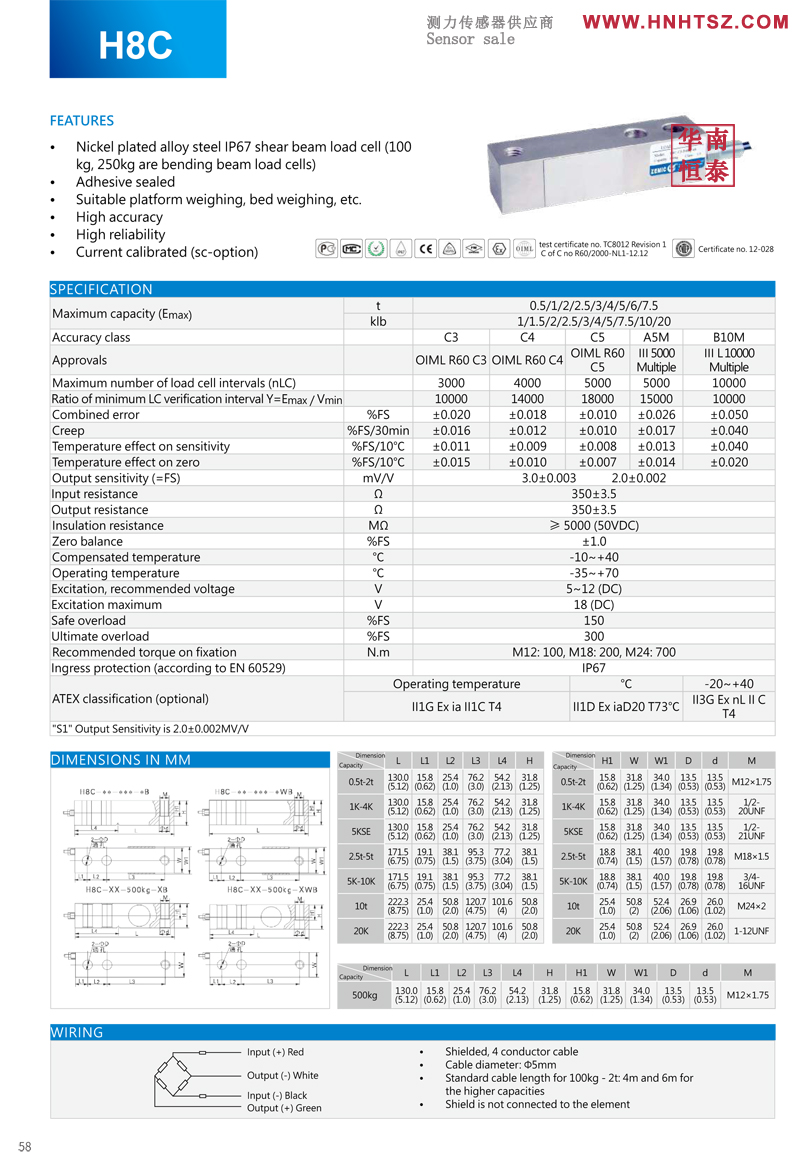

Product performance, product parameters, product manual and product dimensions of ZEMIC load cell H8C-C3-500kg-4B1:
Model list of ZEMIC Load cell H8C-C3-500kg-4B1 series:
H8C-C3-500KG-4B1, H8C-C3-1t-4B1, H8C-C3-2t-4B1, H8C-C3-2.5t-4B1, H8C-C3-3t-4B1, H8C-C3-4t-4B1, H8C-C3-5t-4B1 H8C-C3-6t-4B1 H8C-C3-7.5t-4B1
For installation and commissioning, as well as ZEMIC wiring methods, please feel free to call Shenzhen South China Hengtai Industrial Co., Ltd. for consultation
