CELTRON LOAD CELL

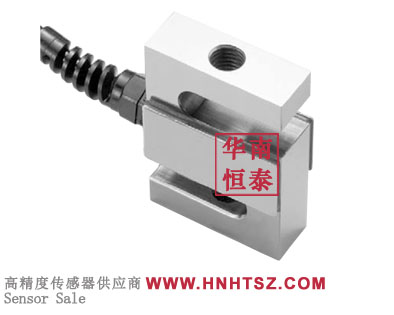

STC-200KGSE load cell

Shape: S-type load cell
Nonlinearity: 0.02%±% of rated output(SS:0.05)
Load Direction:tension&compression
Model:STC-25kg STC-50kg STC-100kg STC-150KG STC-250kg STC-500kg STC-1T STC-2T STC-2.5T STC-5T
Product description: STC-200KGSE use for measuring tension or pressure, S shape, can be used alone, or can be output multiple at the same time through the assembly, used in mechanical reconstruction (machine to electricit
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale STC-200KGSE the load cell adopts the working principle of resistance strain gauge. under the action of external force, the elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also deform with deformation, and the resistance of the strain gauge will become larger or smaller. this resistance change is then converted into an electrical signal (voltage or current) through the corresponding measurement circuit, thus completing the process of converting the external force into an electrical signal.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【CELTRON TENSION load cell STC-200KGSE information】

Note: The following information is for reference, Please refer to CELTRON TENSION version
CELTRON TENSION load cell STC-200KGSE datasheet download：

CELTRON TENSION load cell STC-200KGSE features：
Recommended excitation voltage :10V,AC/DC
Operating temperature range :-10℃~+40℃
Excitation voltage :15V,AC/DC
Temperature compensation range :-20℃~+60℃
Rated output :3mV/V±10%
Zero point balance :±1%
Creep error(20 minutes) :0.02%R.O
Input impedance: 385Ω±5Ω
Output impedance: 350Ω±3Ω
Insulation impedance gt:5000MΩ
Non-linearity :±0.02%R.O(SS:0.05)
Repeatability :±0.03%R.O
Safe load :150%
Failure load :300%
Moisture-proof rubber seal
Bidirectional (tension/compression)

CELTRON TENSION load cell STC-200KGSE dimension：

CELTRON TENSION load cell STC-200KGSE series models：

STC-200KGSE STC-5kgAL,STC-10kgAL
STC-25kg STC-50kg STC-100kg STC-150KG STC-250kg STC-500kg STC-1T STC-2T STC-2.5T STC-5T

If you want to know more about STC-200KGSE price, STC-200KGSE delivery time, STC-200KGSE manufacturer, STC-200KGSE product information, STC-200KGSE product specification,STC-200KGSE technical parameters, STC-200KGSE installation and debugging, STC-200KGSE wiring mode, please contact E-mail:sales@hnhtsz.com
