ANYLOAD Load Cell

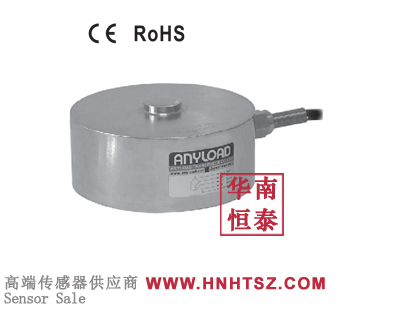

266AA-25kg load cell

Shape:Disk Type load cell
Material:Aluminum
Load direction：Compression
Model:266AA-25kg 266AA-50kg 266AH-100kg 266AH-200kg 266AH-250kg 266AH-500kg 266AH-1t 266AH-2t 266AH-5t 266AH-10t 266AH-20t 266AH-30t
Product description: 266AA-25kgis suitable for force measurement in limited spaces.Widely used for industrial measurement and control， R&D and other applications.
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 266AA-25kg is thin, flexible and highly sensitive sensors like this can meet the demand for force measurements in a limited space, which means that on-site force measuring equipment requires less space and less cost-effective expenditure. The collection and statistics of field measurement data is completed.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 266AA-25kg information】
ANYLOAD load cell 266AA-25kg is selling product in China, in stock,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 266AA-25kg datasheet download：

ANYLOAD load cell 266AA-25kg features：

●Material: Aluminum

●Rated Capacities: 25kg, 50kg (weight 0.3kg)

●Patent design.

●The structure is small and low.

●Small deflection, the compact structure makes it have extraordinary anti-interference ability.

●Suitable for impact occasions and dynamic weighing.

●Use of hazardous environment.

●Obtain CE and RoHS certification.

ANYLOAD load cell 266AA-25kg dimension：

CAPACITY	Unit	C1	C2	C3	C4	C5	H	H1	H2	T
25kg-50kg	mm	62	55	12	50	36	22	4	1	M5 Depth 7.0
55.12lb-110.23lb	inches	2.44	2.17	0.47	1.97	1.42	0.87	0.16	0.04	M5 Depth 0.28
Cable length	3m
Cable Color Code	Red(+E) Black(-E) Green(+S) White(-S) Bare(SHIELD)

ANYLOAD load cell 266AA-25kg series models：

266AA-25kg 266AA-50kg

266AA-25kg belongs to a miniature weighing sensor. It is specially designed for pressure measurement. The center is a convex point. The design of the convex point is always the centralized design of the optimum force point of this kind of miniature weighing sensor. The performance of the force sensor is improved and the transmission of force value is more sensitive through structural amplitude increase. . The bottom is planar design, which is convenient for the placement and balance of the force sensor, makes the value obtained in the process of force measurement more accurate and speed, and reduces the loss of data in the case of high force measurement. Therefore, this kind of weighing sensor is particularly recommended from workmanship, structure, material and performance.

If you want to know more about 266AA-25kg price, 266AA-25kg delivery time, 266AA-25kg manufacturer, 266AA-25kg product information, 266AA-25kg product specification, 266AA-25kg technical parameters, 266AA-25kg installation and debugging, 266AA-25kg wiring mode, please contact E-mail:sales@hnhtsz.com.
