ANYLOAD Load Cell

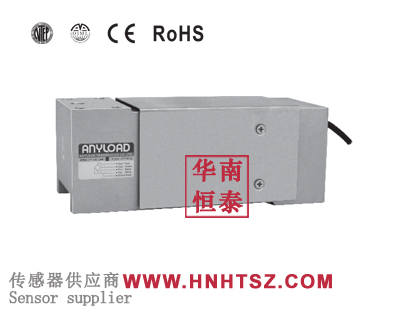

108UA-50kg load cell

Shape: single point load cell
Material:Aluminum
Load direction：Compression
Model:108UA-50kg 108UA-100kg 108UA-200kg 108UA-300kg 108UA-500kg 108UA-635kg 108UA-700kg 108UA-1t
Product description: 108UA-50kg is a tough water- and corrosion-resistant stainless steel single-point load cell. Its versatile design makes it suitable for a wide range of weighing needs, providing excellent performance
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 108UA-50kg Is a worthy single point sensor, the material selection of high quality metal shell, wear resistance, aging resistance, revealing the first-class rose texture is excellent, easy installation, high precision, stable performance, glue sealing, dust, moisture.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108UA-50kg information】
ANYLOAD load cell 108UA-50kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ANYLOAD version
ANYLOAD load cell 108UA-50kg datasheet download：

ANYLOAD load cell 108UA-50kg features：

Material: Aluminum
Thread: Metric
Rated Capacities: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t
Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
NTEP 1:4 000 Class III, Single Cell certified from 200kg-1t
OIML C3 certified from 50kg-500kg
CE and RoHS certified

ANYLOAD load cell 108UA-50kg Applications：

This is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

ANYLOAD load cell 108UA-50kg selection：

ANYLOAD load cell 108UA-50kg series models：

108UA-50kg 108UA-100kg 108UA-200kg 108UA-300kg 108UA-500kg 108UA-635kg 108UA-700kg 108UA-1t

108UA-1000kg

108UAUN-50kg 108UAUN-100kg 108UAUN-200kg 108UAUN-300kg 108UAUN-500kg 108UAUN-635kg 108UAUN-700kg 108UAUN-1t

108UAUN-1000kg

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales ANYLOADWith unique intentions, selected excellent metal materials, with improved technology of the glue seal, everywhere showing excellent quality, is the international level of careful forging, high precision, low cost is the ideal choice for electronic scale and weighing machine OEM applications.

If you want to know more about ANYLOAD price, ANYLOAD delivery time, ANYLOAD manufacturer, ANYLOAD product information, ANYLOAD product specification, ANYLOAD technical parameters, ANYLOAD installation and debugging, ANYLOAD wiring mode, please contact E-mail:sales@hnhtsz.com
